RTDrill DTH & ROTARY DRILLING MACHINES
DTH Drill Rigs & Rotary Drill Rigs Solutions for the professionals connected to the construction, quarry, mining and water well.
DTH DRILL RIGS & ROTARY DRILL RIGS
RTD45
Recommanded hole Size mm – in:127 / 167 – 5 / 6 -1/2
Bit loading capacity Kg – Lbs:13 154 – 29 000
Max drilling depth m – ft:36 – 118
Single pass depth m – ft:5,5 – 18
Air compressor High Pressure: 25.5 m³/min – 24.1 – 25.9 Bar 900 cfm 350 – 375 psi
Engine:CAT Tier III – IV
Power unit kW – hp @ rpm:388 – 520 @ 1 800
RTD55
Recommanded Hole Size mm – in:127 / 172 – 5 / 6-3/4
Bit loading capacity Kg – Lbs:18 144 – 40 000
Max drilling depth m – ft:63,4 – 208
Single pass depth m – ft:8,5 – 28
Air compressor High Pressure:25.5 – 30.3 m³/min 24.0 – 25.9 Bar 900 – 1 070 cfm 350 – 375 psi
Engine:CAT Tier III – IV
Power unit kW – hp @ rpm:433- 580 @ 1 800
RTD70
Recommanded hole Size mm – in:152 /229 – 6 / 9
Bit loading capacity Kg – Lbs:27 216 – 60 000
Max drilling depth m – ft:63,1- 207
Single pass depth m – ft:8,31 – 27,3
Air compressor High Pressure:30,3 – 32.6 m³/min 24.1 – 25.9 Bar 1070 – 1150 cfm 350 – 375 psi
Engine:CAT Tier II – IV
Power unit kW – hp @ rpm:587- 800 @ 1 800
RTD75
Recommanded Hole Size mm – in:229 / 311 – 9 /12 1/4
Bit loading capacity Kg – Lbs:40 824 – 90 000
Max drilling depth m – ft:72,3- 237
Singlepass depth m ft:11,35 – 37,3
Air compressor High Pressure:32.6 – 38.7 m³/min 24.1 – 25.9 Bar 1150 – 1365 cfm 350 – 375 ps
Engine:CAT Tier II – IV
Power unit kW – hp @ rpm:708 – 950 @ 1 800
DRILLING ATTACHEMENTS

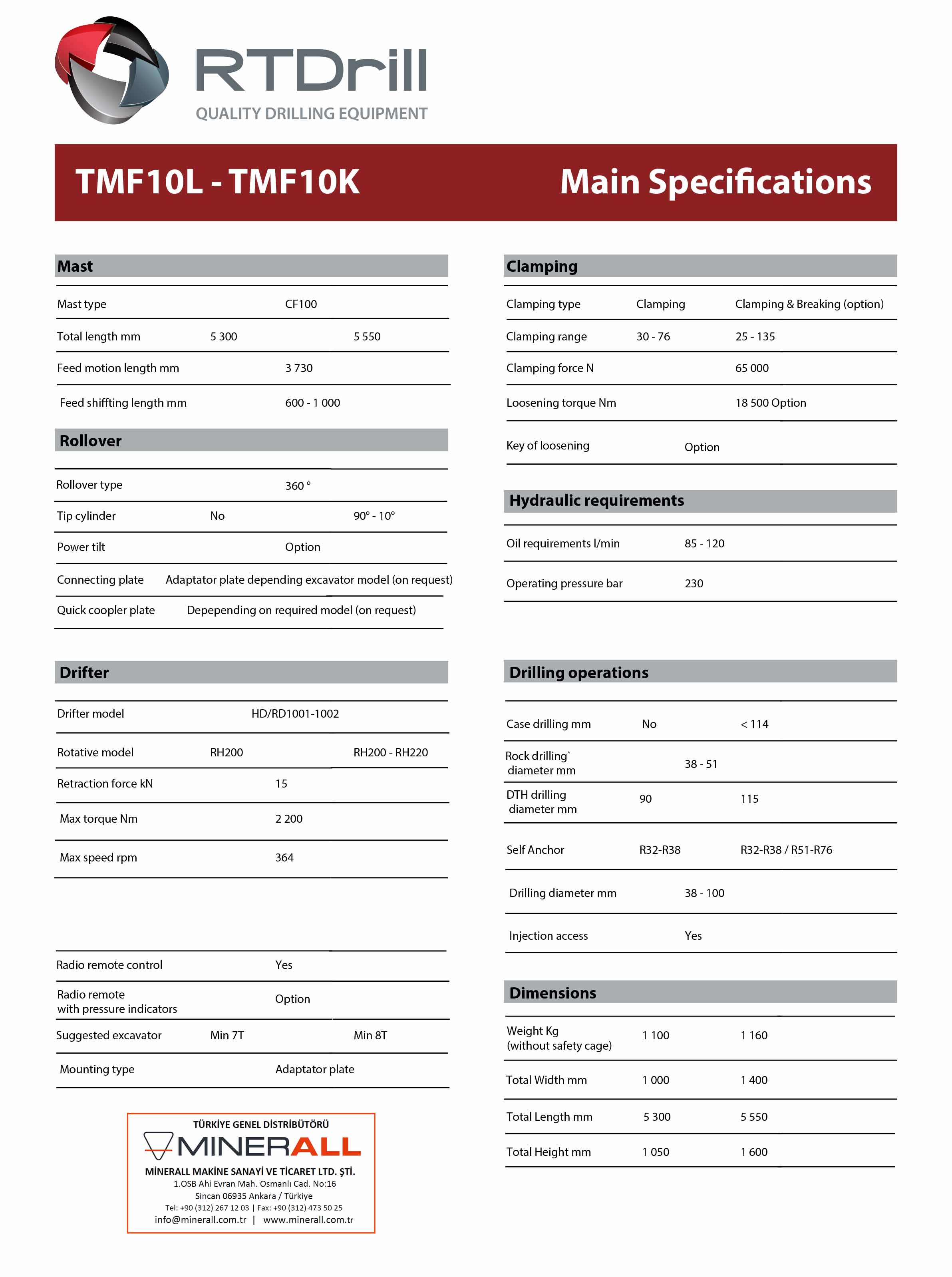

TMF10
Application:Bolting and blasthole drilling
Excavator T:Min 7
Weight Kg (W/O safety cage):1 100 – 1 160
Hydraulic requirements l/min@bar:85 – 120 @ 230
Anchors:R32-R38 / R51-R76
TMF14
Application:Bolting and blasthole drilling
Excavator T:Min 15
Weight Kg (W/O safety cage):1 550
Hydraulic requirements l/min@bar:135 – 170 @ 230
Anchors:R32-R38 / R51-R76
TMF15
Application:Bolting and overburden drilling
Excavator T:Min 20
Weight Kg (W/O safety cage):2 500
Hydraulic requirements l/min@bar:170 – 250 – 280 @ 230
Anchors:R32-R38-R51-R76
TMF20
Application:Bolting and overburden drilling
Excavator T:Min 30
Weight Kg (W/O safety cage):2 900
Hydraulic requirements l/min@bar:280 – 190 @ 230
Anchors:R51-R76 – T114
